Artikelbeschreibung
Seit dem 09.08.2021 im Sortiment

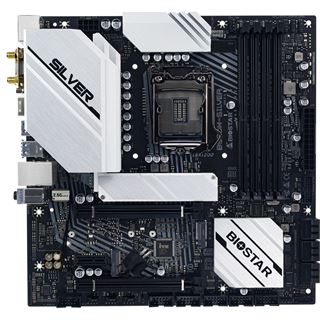

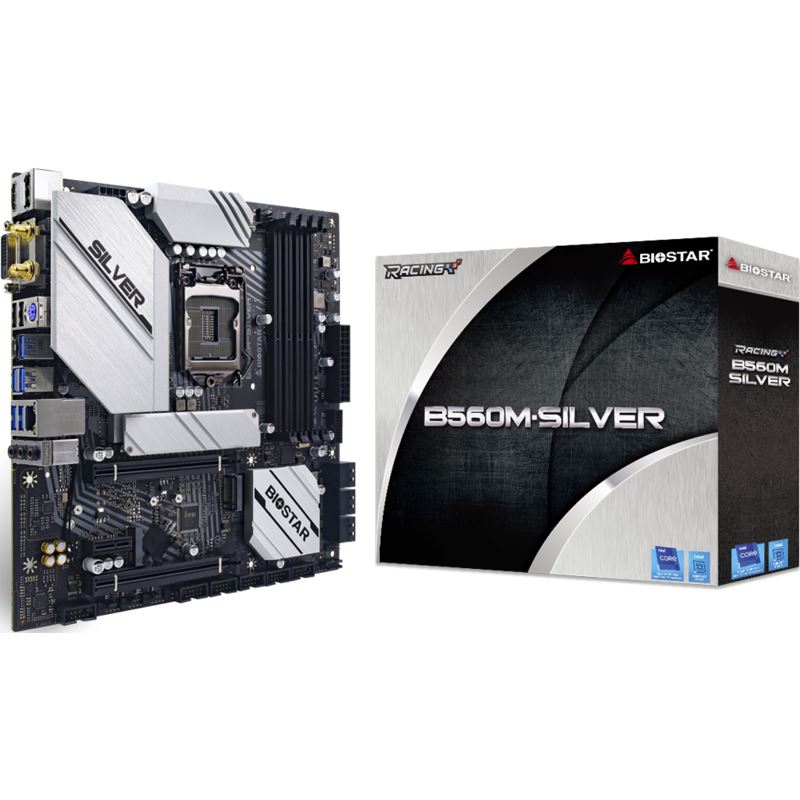

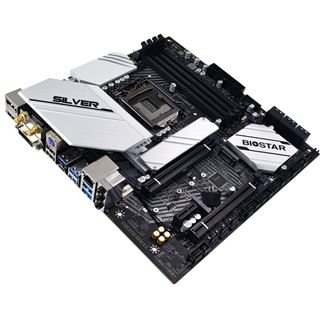

Biostar B560M-SILVER. Prozessorhersteller: Intel, Prozessorsockel: LGA 1200 (Socket H5), Kompatible Prozessoren: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®. Unterstützte Arbeitsspeicher: DDR4-SDRAM, RAM-Speicher maximal: 128 GB, Arbeitsspeicher Typ: DIMM. Unterstützte Speicherlaufwerk-Schnittstellen: M.2, SATA III, RAID Level: 0, 1, 5, 10. Ethernet Schnittstellen Typ: 2.5 Gigabit Ethernet, LAN-Controller: Realtek RTL8125B. Komponente für: PC, Motherboardformfaktor: micro ATX, Motherboard Chipsatz Familie: Intel
Technische Daten
Prozessor: | |
---|---|
Maximale Anzahl an SMP-Prozessoren: | 1 |
Kompatible Prozessoren: | Intel® Celeron®, Intel® Core™ i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel® Pentium® |
Prozessorhersteller: | Intel |
Prozessorsockel: | LGA 1200 |
Speicher: | |
RAM-Speicher maximal: | 128 GB |
Unterstützte Arbeitsspeichergeschwindigkeit: | 2133,2400,2666,2800,2933,3200,3600,3733,3800,3866,4000 MHz |
Unterstützte Arbeitsspeicher: | DDR4-SDRAM |
Arbeitsspeicher Typ: | DIMM |
Speicherkanäle: | Dual-channel |
Ohne ECC: | Ja |
Anzahl der Speichersteckplätze: | 4 |
Gewicht und Abmessungen: | |
Breite: | 244 mm |
Tiefe: | 244 mm |
Netzwerk: | |
WLAN: | Nein |
Ethernet/LAN: | Ja |
Ethernet Schnittstellen Typ: | 2.5 Gigabit Ethernet |
LAN-Controller: | Realtek RTL8125B |
Interne E/A-Anschlüsse: | |
Anzahl USB 2.0 Schnittstellen: | 2 |
CPU Ventilatorstecker: | Ja |
Zahl der COM Stecker: | 1 |
ATX Stromstecker (24-pol.): | Ja |
Zahl der Chassisventilatorstecker: | 3 |
Front Panel Audiostecker: | Ja |
SATA III Anschlüsse: | 6 |
EPS Stromstecker (8-pin): | Ja |
TPM-Anschluss: | Ja |
USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse: | 1 |
Thunderbolt-Stiftleisten: | 1 |
Frontpanel-Stecker: | Ja |
RGB-LED-Stiftleiste: | Ja |

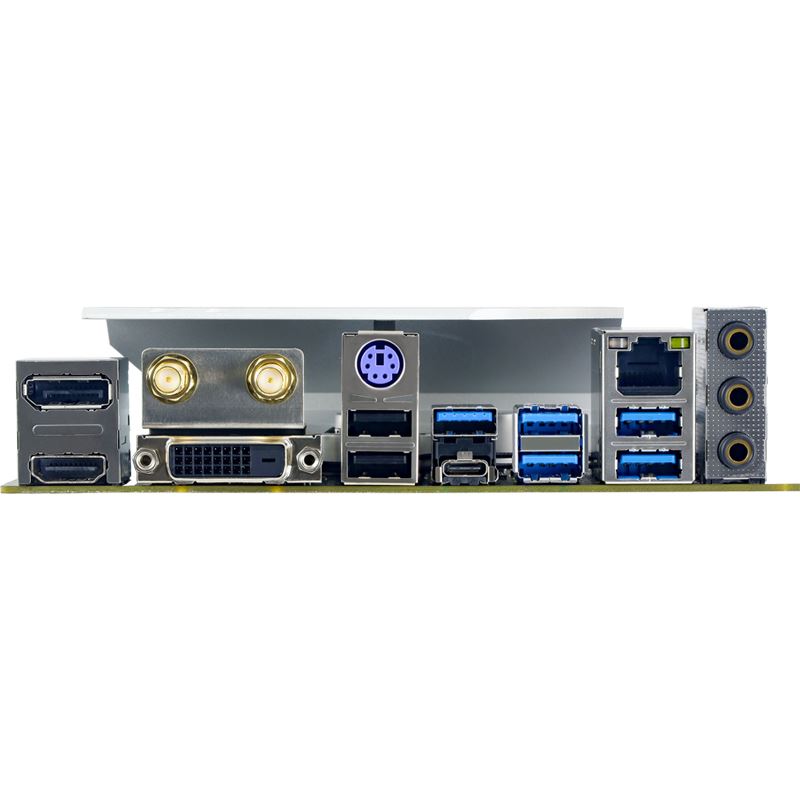

E/A-Anschlüsse auf der Rückseite: | |
Anzahl DVI-D-Anschlüsse: | 1 |
Anzahl HDMI-Anschlüsse: | 1 |
Anzahl Ethernet-LAN-Anschlüsse (RJ-45): | 1 |
Anzahl PS/2 Anschlüsse: | 1 |
Anzahl USB 2.0 Anschlüsse: | 2 |
Anzahl DisplayPort Anschlüsse: | 1 |
WiFi-AP-Antennenbuchse: | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A: | 3 |
USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A: | 2 |
USB 3.2 Gen 2x2 Typ-C Anzahl Anschlüsse: | 1 |
Speicher-Controller: | |
RAID Level: | 0,1,5,10 |
RAID-Unterstützung: | Ja |
Unterstützte Speicherlaufwerk-Schnittstellen: | M.2,SATA III |
Lieferumfang: | |
Mitgelieferte Kabel: | SATA |
Erweiterungssteckplätze: | |
PCI-Express x1 (Gen 3.x)-Anschlüsse: | 1 |
PCI-Express x16 (Gen 3.x)-Anschlüsse: | 1 |
Anzahl der M.2 (M)-Steckplätze: | 2 |
PCI Express x16-Steckplätze (Gen 4.x): | 1 |
BIOS: | |
Clear CMOS-Jumper: | Ja |
Grafik: | |
HDCP: | Ja |
DirectX-Version: | 12.0 |
Merkmale: | |
Audio Kanäle: | 7.1 Kanäle |
Motherboard Chipsatz: | Intel B560 |
Motherboardformfaktor: | micro ATX |
Unterstützt Windows-Betriebssysteme: | Windows 10 x64,Windows 11 |
Motherboard Chipsatz Familie: | Intel |
Komponente für: | PC |
PC Gesundheitsüberwachung: | CPU, Ventilator, Temperatur, Spannung |
Audio-Chip: | Realtek ALC1220 |
Logistikdaten: | |
Warentarifnummer (HS): | 84733020 |
Hinweis: Für die Richtigkeit und Vollständigkeit der hier aufgeführten Daten wird keine Haftung übernommen.
