Artikelbeschreibung
Seit dem 03.05.2019 im Sortiment

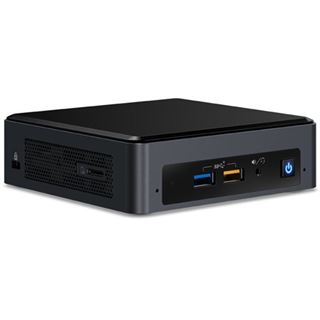

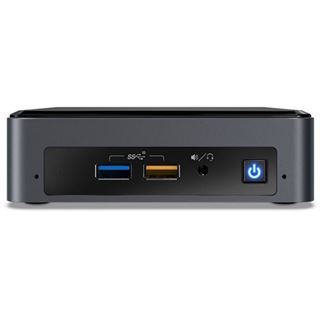

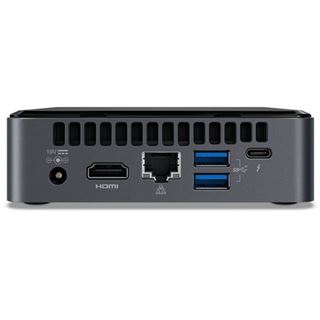

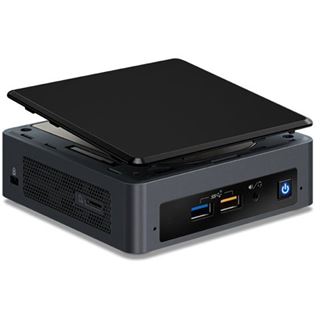

Das TERRA PC-Micro System im extrem kompakten, platzsparenden Gehäuse mit leistungsstarkem Intel Core i3 Prozessor und schnellem NVMe-SSD Speichermedium. Inklusive: VESA Mounting Kit zur Montage hinter einem LCD Monitor/ TV oder an einer Wand-/ oder Tisch-Halterung.
TERRA Greenline-Serie | Micro-PC (0,5 Liter Volumen) | Core i3-8109U (3 GHz), 4 GB SO DDR4-RAM, | 256GB M.2 SSD, Intel Iris Plus Graphics 655, | 1x HDMI, 1x USB Type C (DisplayPort 1.2) | WLAN, 1x LAN 10/100/1000, | Windows 10 Pro, MS Office trial | (!)
Technische Daten
Prozessor: | |
---|---|
Anzahl Prozessorkerne: | 2 |
Anzahl installierter Prozessoren: | 1 |
Prozessor: | i3-8109U |
Prozessorhersteller: | Intel |
Prozessorfamilie: | Intel® Core™ i3 der achten Generation |
Prozessorsockel: | BGA 1528 |
Systembus-Rate: | 4 GT/s |
Prozessor Lithografie: | 14 nm |
Prozessor Boost-Frequenz: | 3,6 GHz |
Tjunction: | 100 °C |
Prozessor-Threads: | 4 |
Bus Typ: | OPI |
Prozessor-Taktfrequenz: | 3,6 GHz |
Thermal Design Power (TDP): | 28 W |
Stepping: | D0 |
PCI-Express-Slots-Version: | 3.0 |
Prozessorbetriebsmodi: | 64-bit |
Prozessor-Cache: | 4 MB |
Prozessor Codename: | Coffee Lake |
Maximale Anzahl der PCI-Express-Lanes: | 16 |
Durch den Prozessor (max) unterstützte Speicherbandbreite: | 37,5 GB/s |
Prozessor Cache Typ: | Smart Cache |
TDP-down konfigurierbar: | 20 W |
TDP-down Frequenz konfigurierbar: | 1,9 GHz |
Maximaler interner Speicher, vom Prozessor unterstützt: | 32 GB |
Speichertypen, vom Prozessor unterstützt: | DDR4-SDRAM,LPDDR3-SDRAM |
Prozessorgeneration: | Intel® Core™ i3 der achten Generation |
Speicher: | |
Interner Speichertyp: | DDR4-SDRAM |
Speicherkartensteckplätze: | 1x SO-DIMM |
RAM-Speicher maximal: | 32 GB |
Speicherlayout: | 1 x 4 GB |
Speicherkapazität: | 4 GB |
Anschlüsse und Schnittstellen: | |
Anzahl HDMI-Anschlüsse: | 1 |
Anzahl Ethernet-LAN-Anschlüsse (RJ-45): | 1 |
Mikrofon-Eingang: | Ja |
DVI Anschluss: | Ja |
Anzahl DisplayPort Anschlüsse: | 1 |
Kopfhörerausgänge: | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A: | 4 |
Anzahl Thunderbolt 3 Anschlüsse: | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ C: | 1 |
DisplayPorts-Version: | 1.2 |
Gewicht und Abmessungen: | |
Gewicht: | 500 g |
Höhe: | 36 mm |
Breite: | 117 mm |
Tiefe: | 112 mm |
Energie: | |
Stromversorgung - Eingang Spannung: | 100 - 240 V |
Stromversorgung - Eingangsfrequenz: | 50 - 60 Hz |
Stromverbrauch (Standardbetrieb): | 2,52 W |
Stromversorgung: | 90 W |
Stromverbrauch (Standby): | 15 W |
Betriebsbedingungen: | |
Relative Luftfeuchtigkeit in Betrieb: | 0 - 85 % |
Betriebstemperatur: | 0 - 40 °C |
Netzwerk: | |
WLAN: | Ja |
Ethernet/LAN: | Ja |
Bluetooth: | Ja |
Bluetooth-Version: | 5.0 |
WLAN-Standards: | 802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
Speichermedium: | |
Optisches Laufwerk - Typ: | Nein |
Gesamtspeicherkapazität: | 256 GB |
Integrierter Kartenleser: | Ja |
SSD Speicherkapazität: | 240 GB |
Anzahl SSD installiert: | 1 |
Speichermedien: | SSD |
Anzahl der installierten Speicherlaufwerke: | 1 |
NVMe: | Ja |
SSD Schnittstelle: | M.2 |
Software: | |
Installiertes Betriebssystem: | Windows 10 Pro |
Lieferumfang: | |
Anzeige enthalten: | Nein |
Mitgelieferte Kabel: | AC |
Betriebsanleitung: | Ja |
Design: | |
Gehäusetyp: | Mini PC |
Produktfarbe: | Schwarz |
Grafik: | |
Eingebautes Grafikkartenmodell: | Intel Iris Plus Graphics 655 |
On-Board Grafikadapter Basisfrequenz: | 300 MHz |
Maximale dynamische Frequenz der On-Board Grafikadapter: | 1050 MHz |
On-Board Grafikadapter Burstfrequenz: | 300 MHz |
Anzahl Grafikadapter HDMI-Ports: | 1 |
On-Board Grafikadapter Geräte-ID: | 0x3EA5 |
Anzahl an unterstützen Displays (On-Board-Grafik): | 3 |
On-Board Grafikadapter DirectX Version: | 12.0 |
On-Board Grafikadapter OpenGL Version: | 4.5 |
Maximaler integrierter Grafik-Adapterspeicher: | 32 GB |
Separater Grafikadapter: | Nein |
Anzahl Grafikadapter DisplayPorts: | 1 |
Prozessor Besonderheiten: | |
Prozessor-Code: | SRCKC |
Intel® InTru™ 3D Technologie: | Ja |
Execute Disable Bit: | Ja |
Verbesserte Intel SpeedStep Technologie: | Ja |
Leerlauf Zustände: | Ja |
Thermal-Überwachungstechnologien: | Ja |
CPU Konfiguration (max): | 1 |
Eingebettete Optionen verfügbar: | Nein |
Prozessor-Paketgröße: | 46x24 mm |
Intel® 64: | Ja |
Intel® Clear Video Technologie: | Ja |
Intel® Enhanced Halt State: | Ja |
Intel® Flex Memory Access: | Ja |
Intel® Identity Protection Technologieversion: | 1,00 |
Intel® Quick-Sync-Video-Technik: | Ja |
Intel® Secure Key Technologieversion: | 1,00 |
Intel® Software Guard Extensions (Intel® SGX): | Ja |
Intel® Stable Image Platform Program (SIPP) Version: | 0,00 |
Intel® Trusted-Execution-Technik: | Nein |
Intel® TSX-NI: | Nein |
Intel® TSX-NI-Version: | 0,00 |
Intel® Turbo-Boost-Technologie: | 2.0 |
Intel® Virtualization Technologie (VT-X): | Ja |
Intel® Virtualisierungstechnik für direkte I/O (VT-d): | Ja |
Intel® VT-x mit Extended Page Tables (EPT): | Ja |
Intel® AES New Instructions (Intel® AES-NI): | Ja |
Intel® Clear Video HD Technology für (Intel® CVT HD): | Ja |
Intel® Clear Video Technology für Mobile Internet Devices (Intel® CVT for MID): | Ja |
Intel® Hyper-Threading-Technik (Intel® HT Technology): | Ja |
Intel® Identity-Protection-Technologie (Intel® IPT): | Ja |
Intel® My-WiFi-Technik (Intel® MWT): | Ja |
Intel® OS Guard: | Ja |
Intel® Sicherer Schlüssel: | Ja |
ARK Prozessorerkennung: | 135936 |
Intel Stable Image Platform Program (SIPP): | Nein |
Leistungen: | |
Marktpositionierung: | Business |
Produkttyp: | PC |
Hinweis: Für die Richtigkeit und Vollständigkeit der hier aufgeführten Daten wird keine Haftung übernommen.
