Artikelbeschreibung
Seit dem 16.10.2013 im Sortiment
Für diesen Artikel ist noch keine Produktbeschreibung vorhanden.
Technische Daten
Allgemein: | |
---|---|

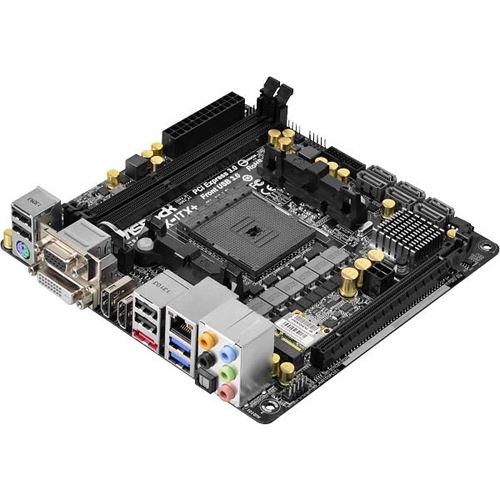

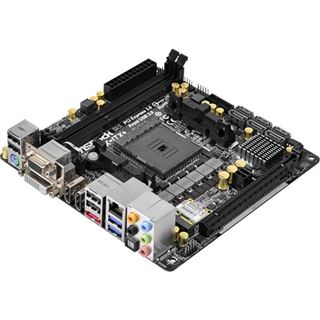

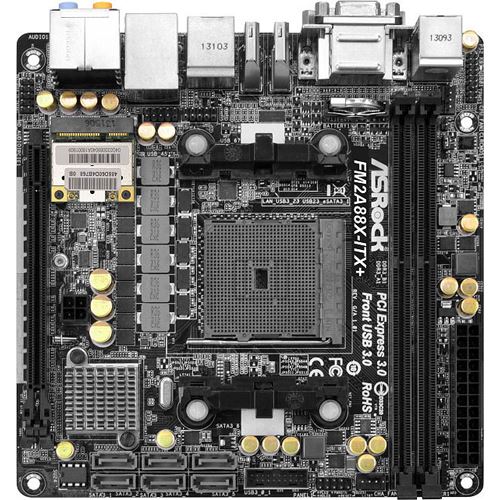

Mainboard Modell: | FM2A88X-ITX+ |
Mainboard Sockel: | So.FM2+ |
Mainboard Chipsatz: | AMD A88X |
Mainboard Formfaktor: | Mini-ITX |
Onboard Grafik: | AMD Radeon Grafik Unterstützung |
Grafikausgänge: | 1x DVI, 2x HDMI, 1x VGA |
MultiGPU Fähigkeit: | nicht geeignet |
Arbeitsspeicher Slots: | 2x |
Arbeitsspeicher Typ: | DDR3 |
Arbeitsspeicher Bauform: | DIMM |
Arbeitsspeicherarchitektur: | Dual Channel |
Max. Kapazität der Einzelmodule: | 8 GB |
Unterstützte Speichermodule: | DDR3-1066, DDR3-1333, DDR3-1600, DDR3-1866, DDR3-2133, DDR3-2400+ |
Anzahl PCIe x16 Slots: | 1x PCIe 3.0 x16 |
Anzahl PCIe x8 Slots: | nicht vorhanden |
Anzahl PCIe x4 Slots: | nicht vorhanden |
Anzahl PCIe x1 Slots: | nicht vorhanden |
Anzahl PCI-X Slots: | nicht vorhanden |
Anzahl PCI Slots: | nicht vorhanden |
Anzahl AGP Slots: | nicht vorhanden |
Anzahl mSATA Anschlüsse: | 1x |
Anzahl SATA 6GB/s Anschlüsse: | 6x |
Anzahl SATA 3GB/s Anschlüsse: | nicht vorhanden |
Anzahl SAS 6GB/s Anschlüsse: | nicht vorhanden |
Anzahl SAS 3GB/s Anschlüsse: | nicht vorhanden |
Anzahl IDE Anschlüsse: | nicht vorhanden |
Anzahl Floppy Anschlüsse: | nicht vorhanden |
Soundcodec: | Realtek ALC1150 Audio Codec |
Audiotyp: | 7.1 Sound |
Audioanschlüsse: | 5x 3,5mm Klinke, 1x Toslink (optisch) |
Netzwerkadapter: | 1x 1000 MBit |
Wireless Lan: | Wi-Fi 802.11 a/b/g/n |
Bluetooth: | Bluetooth V4.0 |
Anzahl USB2.0 Anschlüsse: | 4x |
Anzahl USB3.2 Gen 1 Anschlüsse (USB 3.0): | 2x |
Anzahl FireWire Anschlüsse: | nicht vorhanden |
Anzahl Parallelport Anschlüsse: | nicht vorhanden |
Anzahl eSATA Anschlüsse: | 1x |
Anzahl Seriellport Anschlüsse: | nicht vorhanden |
Anzahl PS/2 Anschlüsse: | 1x |
BIOS Typ: | UEFI |
integrierte CPU: | nicht vorhanden |
Verpackung: | Retail |
Hinweis: Für die Richtigkeit und Vollständigkeit der hier aufgeführten Daten wird keine Haftung übernommen.
Artikelbewertungen
31 Bewertungen
4.5 von 5,0
anzeigen
Sie haben Erfahrungen mit diesem Artikel?
Geben Sie eine Bewertung abReklamationsquote: 7,75%
4
5
Had to update the bios and the system didn't boot anymore after the update. Fixed now but was a minor issue. I was dissapointed that i had to connect the antenne wires myself. Bought a Z87E-ITX a while ago and it was already done.
But overal nice mainbord.
Sophie am 04.01.2016
Verifizierter Kauf
Good but:Had to update the bios and the system didn't boot anymore after the update. Fixed now but was a minor issue. I was dissapointed that i had to connect the antenne wires myself. Bought a Z87E-ITX a while ago and it was already done.
But overal nice mainbord.
5
5
HDMI in / Out als HTPC nutzbar
6x Sata 6GB
ASRock FM2A88X-ITX+ AMD A88X
AMD A10 Series 7850K 4x 3.70GHz
Enermax Liqmax II 240 Komplett-Wasserkühlung
Asus HD7850-DC2T-2GD5
8GB Crucial Ballistix Sport DDR3-1600 DIMM CL9 Dual Kit
6000GB WD Red WD60EFRX 64MB
3000GB WD Red WD30EFRX 64MB
2000GB WD Red WD20EFRX 64MB
OC Agility 128GB SSD
Andreas am 29.11.2015
Verifizierter Kauf
Bei mir im NAS im EinsatzHDMI in / Out als HTPC nutzbar
6x Sata 6GB
ASRock FM2A88X-ITX+ AMD A88X
AMD A10 Series 7850K 4x 3.70GHz
Enermax Liqmax II 240 Komplett-Wasserkühlung
Asus HD7850-DC2T-2GD5
8GB Crucial Ballistix Sport DDR3-1600 DIMM CL9 Dual Kit
6000GB WD Red WD60EFRX 64MB
3000GB WD Red WD30EFRX 64MB
2000GB WD Red WD20EFRX 64MB
OC Agility 128GB SSD
5
5
Alexander am 24.06.2015
Absolutes Spitzenklasseboard. Einmal im HTPC verbaut. Gehäuse Chieftec FI-02BC-U3, 8Gb DDR3- RAM, Sundisk 240GB-SSD, 2x 2GB WD 2TB 2,5Zoll HDD, Blue-Ray Slim Line Brenner. Das Ganze ist kaum größer als ein Autoradio. Als CPU wurde ein AMD A8 Quadcore mit TDP 45 W verbaut.
Auch kleinere Spiele wie Plants vs. Zombies usw. laufen ruckelfrei. Kommt natürlich super auf einem 50 Zoll Samsung. Empfehle für einen HTPC als Tastatur Logitech K360 und keine Maus sondern einen Trackball Logitech M 570. Mäuse machen sich schlecht 2 m vom Fernseher auf der Couch. Der Durchschnittliche Energieverbrauch des Systems liegt bei gemessenen 43W, höchster erreichter Verbrauch bisher 53W.
In abgespeckter Form wurden dieses System, mit diesem Board, in den letzten Monaten über 50 mal von mir an Schulen verkauft. Keine Ausfälle keine Probleme! Läuft wie die berühmte "Schmitz Katze".
Werde in nächster Zeit versuchen einen Homeserver inkl. Cloud Zugang damit aufzusetzen. PCIe wird mit SATA-Adapterkarte aufgerüstet um 10x SATA 6Gbit/s Schnittstellen zu erreichen.
Passendes Gehäuse werde ich in diesem Fall wohl selbst entwickeln müssen. Autoradiogröße wird's nicht werden, aber vielleicht reicht ja etwas größer als ein Schuhkarton.
Ergebnisse und Beurteilung hier, wenn es so weit ist.
Im übrigen als Tipp, die empfindlichsten Mainboards für schlechte Netzteile sind von ASRock. Wer Abstürze, Hänger usw. hat sollte sich vergewissern, das es sich nicht um ein Grabbeltischnetzteil handelt. Da schmeißen die Dinger gerne mal nach einem halben bis dreiviertel Jahr die Kondis und geben den Geist auf. Absolutes Minimum auf der +5Vsb Leitung sind 2,5A. Weniger und euer ASRock reißt, meist schon in der Garantiezeit, die Hufe hoch.
Auch kleinere Spiele wie Plants vs. Zombies usw. laufen ruckelfrei. Kommt natürlich super auf einem 50 Zoll Samsung. Empfehle für einen HTPC als Tastatur Logitech K360 und keine Maus sondern einen Trackball Logitech M 570. Mäuse machen sich schlecht 2 m vom Fernseher auf der Couch. Der Durchschnittliche Energieverbrauch des Systems liegt bei gemessenen 43W, höchster erreichter Verbrauch bisher 53W.
In abgespeckter Form wurden dieses System, mit diesem Board, in den letzten Monaten über 50 mal von mir an Schulen verkauft. Keine Ausfälle keine Probleme! Läuft wie die berühmte "Schmitz Katze".
Werde in nächster Zeit versuchen einen Homeserver inkl. Cloud Zugang damit aufzusetzen. PCIe wird mit SATA-Adapterkarte aufgerüstet um 10x SATA 6Gbit/s Schnittstellen zu erreichen.
Passendes Gehäuse werde ich in diesem Fall wohl selbst entwickeln müssen. Autoradiogröße wird's nicht werden, aber vielleicht reicht ja etwas größer als ein Schuhkarton.
Ergebnisse und Beurteilung hier, wenn es so weit ist.
Im übrigen als Tipp, die empfindlichsten Mainboards für schlechte Netzteile sind von ASRock. Wer Abstürze, Hänger usw. hat sollte sich vergewissern, das es sich nicht um ein Grabbeltischnetzteil handelt. Da schmeißen die Dinger gerne mal nach einem halben bis dreiviertel Jahr die Kondis und geben den Geist auf. Absolutes Minimum auf der +5Vsb Leitung sind 2,5A. Weniger und euer ASRock reißt, meist schon in der Garantiezeit, die Hufe hoch.
5
5
Marcel am 19.06.2015
Verifizierter Kauf
Ich betreibe dieses Board mit einem A8 Series CPU und kann bisher nicht klagen, läuft bestens....
4
5
Das integrierte WLAN-Modul ist absolut spitze und ich habe in allen Ecken des Hauses vollen Empfang. Das einzige woran ich noch keinen Gefallen gefunden habe, ist die Lüftersteuerung von Asrock. Ich habe einen Aftermarket-Kühler für die APU verwendet und einen weiteren PWM Lüfter und beide lassen sich mit der Lüftersteuerung nur schwer einstellen.
Ansonsten: Klare Kaufempfehlung!
Benedikt am 31.05.2015
Verifizierter Kauf
Ich habe dieses Mainboard in Kombination mit einem A5800k gekauft und wurde nicht enttäuscht!Das integrierte WLAN-Modul ist absolut spitze und ich habe in allen Ecken des Hauses vollen Empfang. Das einzige woran ich noch keinen Gefallen gefunden habe, ist die Lüftersteuerung von Asrock. Ich habe einen Aftermarket-Kühler für die APU verwendet und einen weiteren PWM Lüfter und beide lassen sich mit der Lüftersteuerung nur schwer einstellen.
Ansonsten: Klare Kaufempfehlung!
4
5
++ The shipped UEFI bios version is 2.40, which at least supports A10-7800 and G-Skill 2133MHz out-of-the-box, no need to upgrade
++ CPU socket location is good for after-market coolers ...
-- ... but the components on the back side of the board prevent usage of some mounting kits (mine is OK, though)
-- Poor location of Front HD-Audio connector (will be blocked by PCIE cards)
-- The AsRock's UEFI bios doesn't seem to support RPM control via voltage for 3-pin fans, only PWM is supported (4-pin)
-- The Wifi/BT antenna is quite ugly and burdensome (will probably have to invest in getting standard antennas, at some point)
Other thoughts:
This is my second board, had to return the first one as it didn't work (not sure whether the fault was in CPU or MB).
6 SATA ports on an ITX board?! Waste of space.
Only two fan sockets - on the other hand, two should be enough for ITX systems.
Linux Mint 17.1 (and all the other distros I've tried so far) work out-of-the-box, no need to jump through hoops.
I know there are quite a lot of negatives listed. But in the end, most of them are low-priority issues. All in all, it's a good board. Biggest deciding factor should be the CPU socket location. First select your CPU cooler, then find out whether you want the socket in the center or more towards the edge. For FM2+, there aren't that many ITX choices (5 in total, I think). In my opinion, the center location is better for bigger coolers.
Hannu am 28.03.2015
Verifizierter Kauf
++ Pretty much full connectability (DVI, HDMI, VGA, optical audio, eSATA, Wifi, BT, ...)++ The shipped UEFI bios version is 2.40, which at least supports A10-7800 and G-Skill 2133MHz out-of-the-box, no need to upgrade
++ CPU socket location is good for after-market coolers ...
-- ... but the components on the back side of the board prevent usage of some mounting kits (mine is OK, though)
-- Poor location of Front HD-Audio connector (will be blocked by PCIE cards)
-- The AsRock's UEFI bios doesn't seem to support RPM control via voltage for 3-pin fans, only PWM is supported (4-pin)
-- The Wifi/BT antenna is quite ugly and burdensome (will probably have to invest in getting standard antennas, at some point)
Other thoughts:
This is my second board, had to return the first one as it didn't work (not sure whether the fault was in CPU or MB).
6 SATA ports on an ITX board?! Waste of space.
Only two fan sockets - on the other hand, two should be enough for ITX systems.
Linux Mint 17.1 (and all the other distros I've tried so far) work out-of-the-box, no need to jump through hoops.
I know there are quite a lot of negatives listed. But in the end, most of them are low-priority issues. All in all, it's a good board. Biggest deciding factor should be the CPU socket location. First select your CPU cooler, then find out whether you want the socket in the center or more towards the edge. For FM2+, there aren't that many ITX choices (5 in total, I think). In my opinion, the center location is better for bigger coolers.
5
5
Tolles UEFI - Bios mit 1 Click update funktion aus dem Bios heraus (war nötig um meinen A8 7600 auf 45W TDP stellen zu können.
War nie ein Fan von High end Mainboards, da der Mehrpreis sich für meine Bedürfnisse nie gerechnet hat (Nutze kein Firewire, keine Dual Grakas, kein Festplatten docking, keine TV-Karte.)
Hat alles was ein normaler HTPC braucht. Inklusive USB 3, HDMI, Onboard Sound und mehr als brauchbarem WLan Empfang.
Klasse Teil.
Sebastian am 19.03.2015
Verifizierter Kauf
Als günstigstes mainboard seiner Klasse gekauft. Arbeitet solide und schnell. Erkennt alle anderen Komponenten problemlos. Tolles UEFI - Bios mit 1 Click update funktion aus dem Bios heraus (war nötig um meinen A8 7600 auf 45W TDP stellen zu können.
War nie ein Fan von High end Mainboards, da der Mehrpreis sich für meine Bedürfnisse nie gerechnet hat (Nutze kein Firewire, keine Dual Grakas, kein Festplatten docking, keine TV-Karte.)
Hat alles was ein normaler HTPC braucht. Inklusive USB 3, HDMI, Onboard Sound und mehr als brauchbarem WLan Empfang.
Klasse Teil.
Zeige 1 bis 10 (von insgesamt 31 Bewertungen)
